XD-30-01wall washer
Designed for architectural façades and landscape lighting, this LED wall washer delivers uniform, directional illumination with flexible 200° adjustment. Its durable aluminum housing, tempered-glass cover and IP66 protection ensure reliable outdoor performance. Multiple beam angles and single-color, dual-white or RGBW options support a wide range of creative lighting effects. ON/OFF and DMX512 control are available for different project requirements.
- 200° adjustable design enables flexible and precise light aiming.
- 20°, 30°, 40° and 60° beam angles suit different lighting effects.
- Single color, dual white and RGBW options support creative applications.
- ON/OFF and DMX512 control options simplify project integration.
Product Specifications
Review key protection, electrical and lighting specifications to select the right configuration for your project.
| Category | Parameter | Specification |
|---|---|---|
|
Fixture Parameters |
Beam Angle | 20° / 30° / 40° / 60° |
| Case Material/Color | Aviation-grade aluminum alloy (grey), Baitr standard grey or customized color | |
| Cover Material/Color | Tempered glass | |
| IP Rate | IP66 structure waterproof | |
| Fixture Power | 18W–24W | |
| Input Voltage | DC24V | |
| Power Factor | — | |
| Light Efficiency | 75 lm/W (white) | |
| Pixel Segment | 1 pixel / 4 pixels | |
| Light Angle | 200° adjustable | |
| Cable Location | From the bottom | |
| Series Connection Quantity | 8 pcs | |
| Control Method | ON/OFF / DMX512 | |
| Environment Temperature | −30°C to +35°C | |
| Net Weight | 1.4 kg | |
| Certification Standards | GB7000.1-2015 / GB7000.201-2008 | |
|
LED Parameters |
LED Chip | Cree / OSRAM |
| LED Type | CLQ6B / 3030 | |
| CCT | Single color / Dual white / RGBW | |
| LED Life | 50,000 hours | |
|
Other Parameters |
Cable Size | 5-pin rubber cable; power cable 1.0 mm²; signal cable 0.3 mm² |
| Waterproof Connector | Φ16 mm aluminum alloy | |
| Connector | Φ1.5 mm gold-plated solid pins | |
| Cable Length | 150 mm | |
| Fixing Clip | 304 stainless steel |

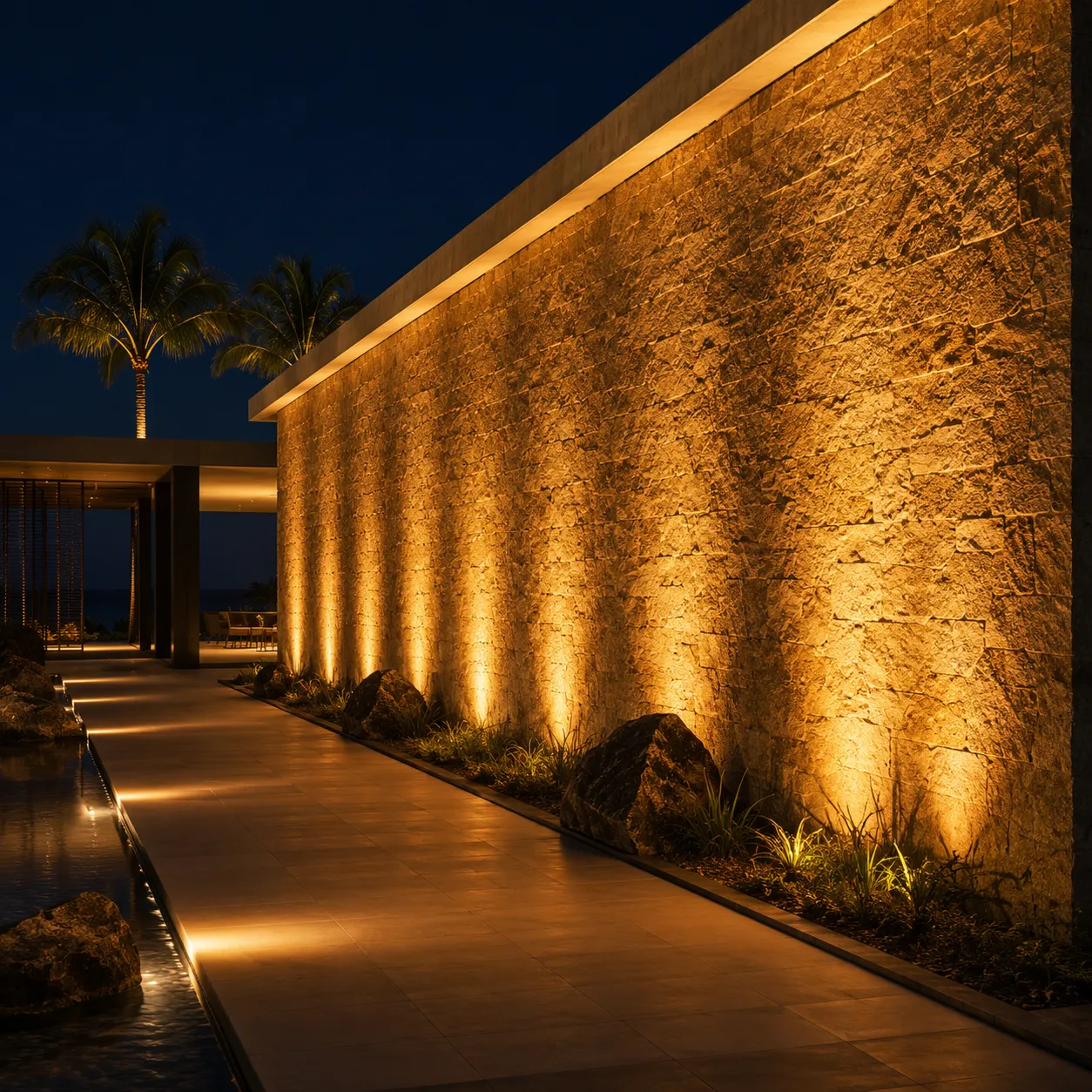

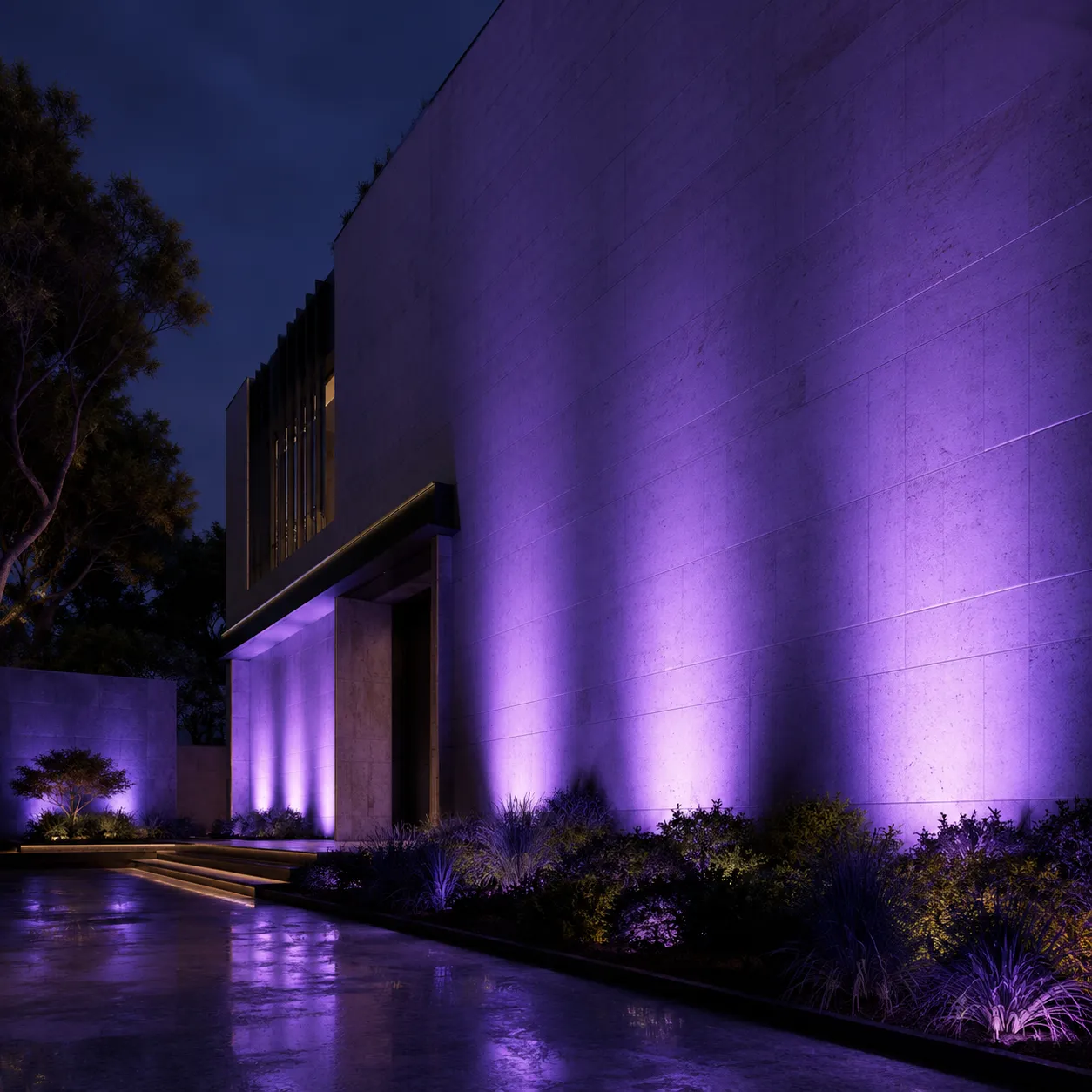

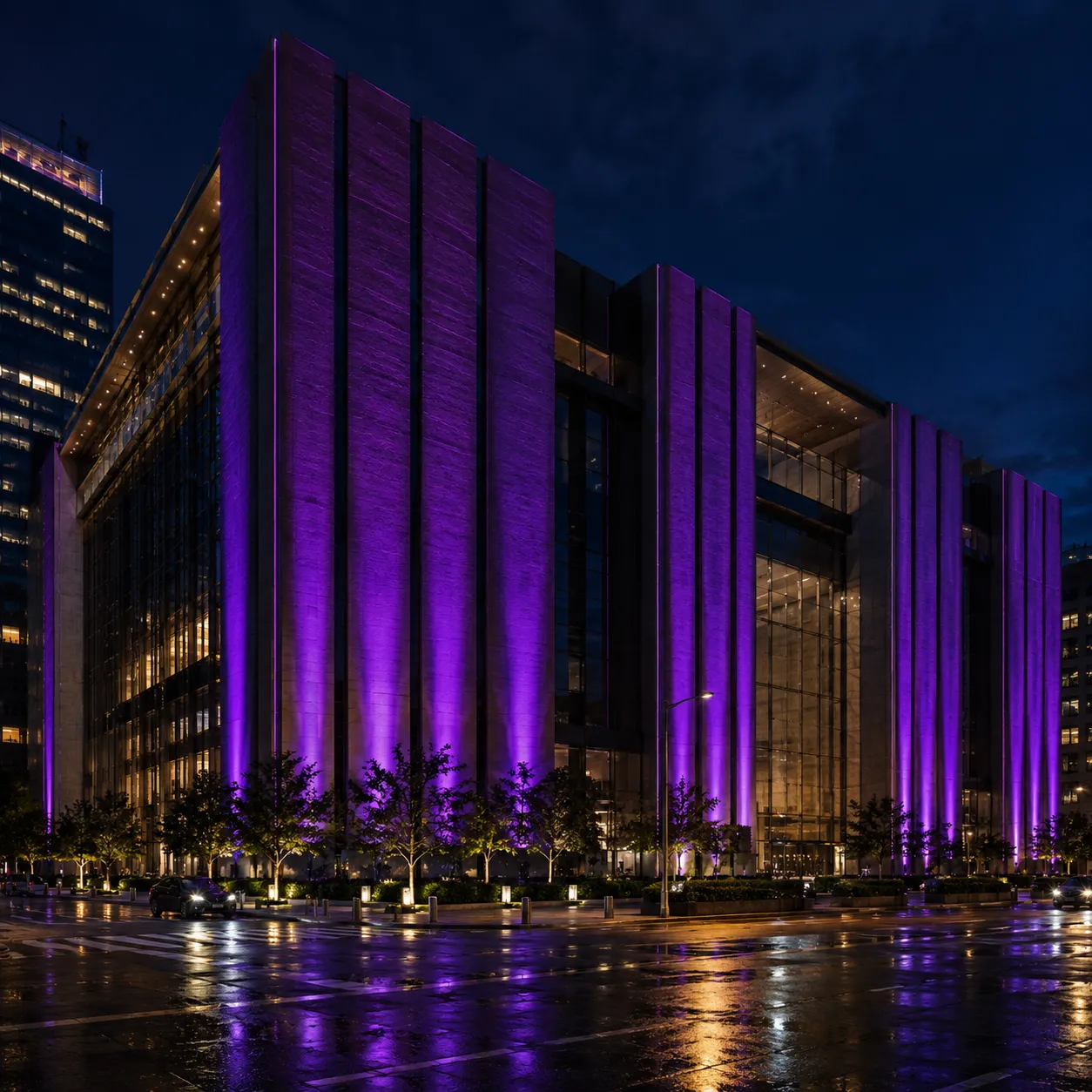

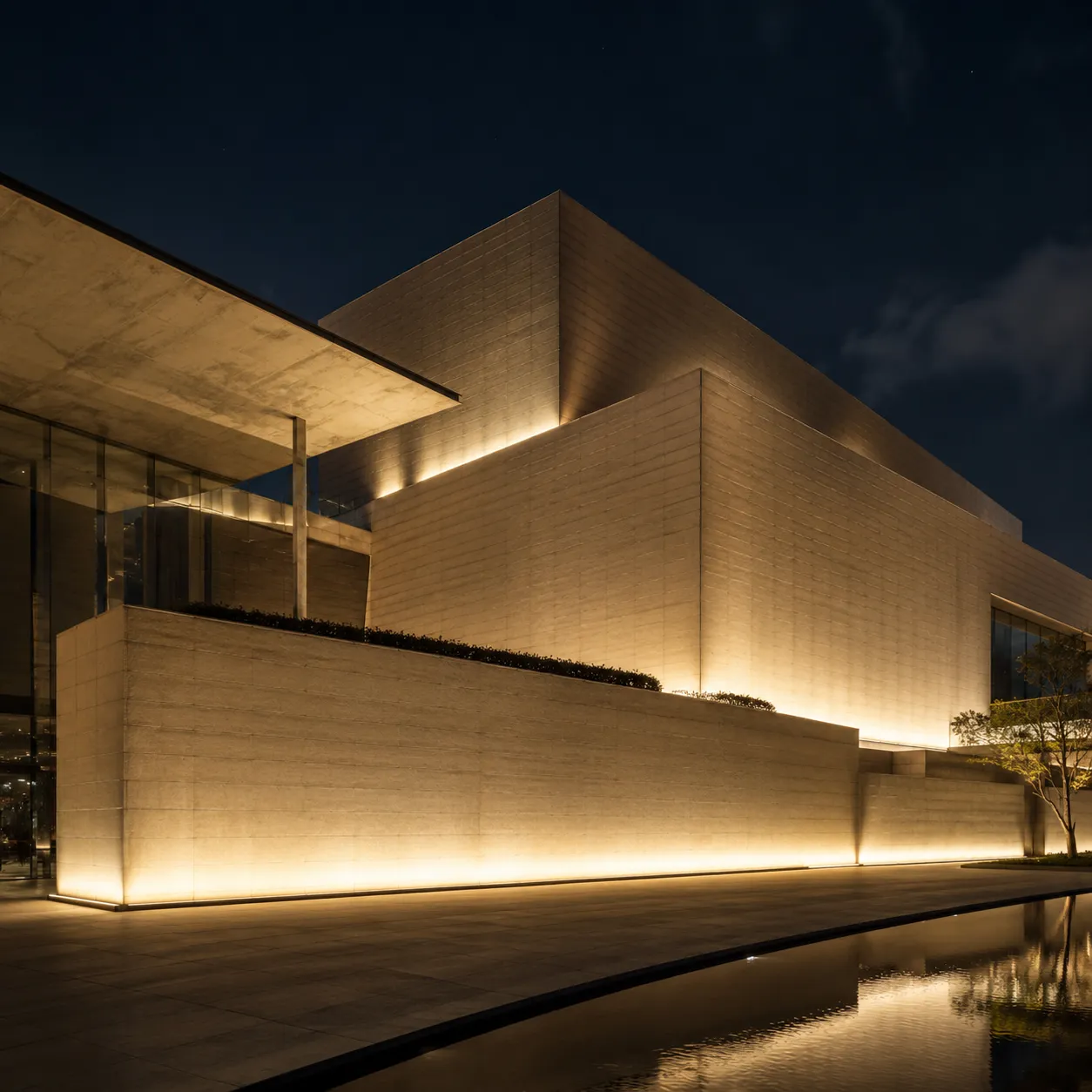

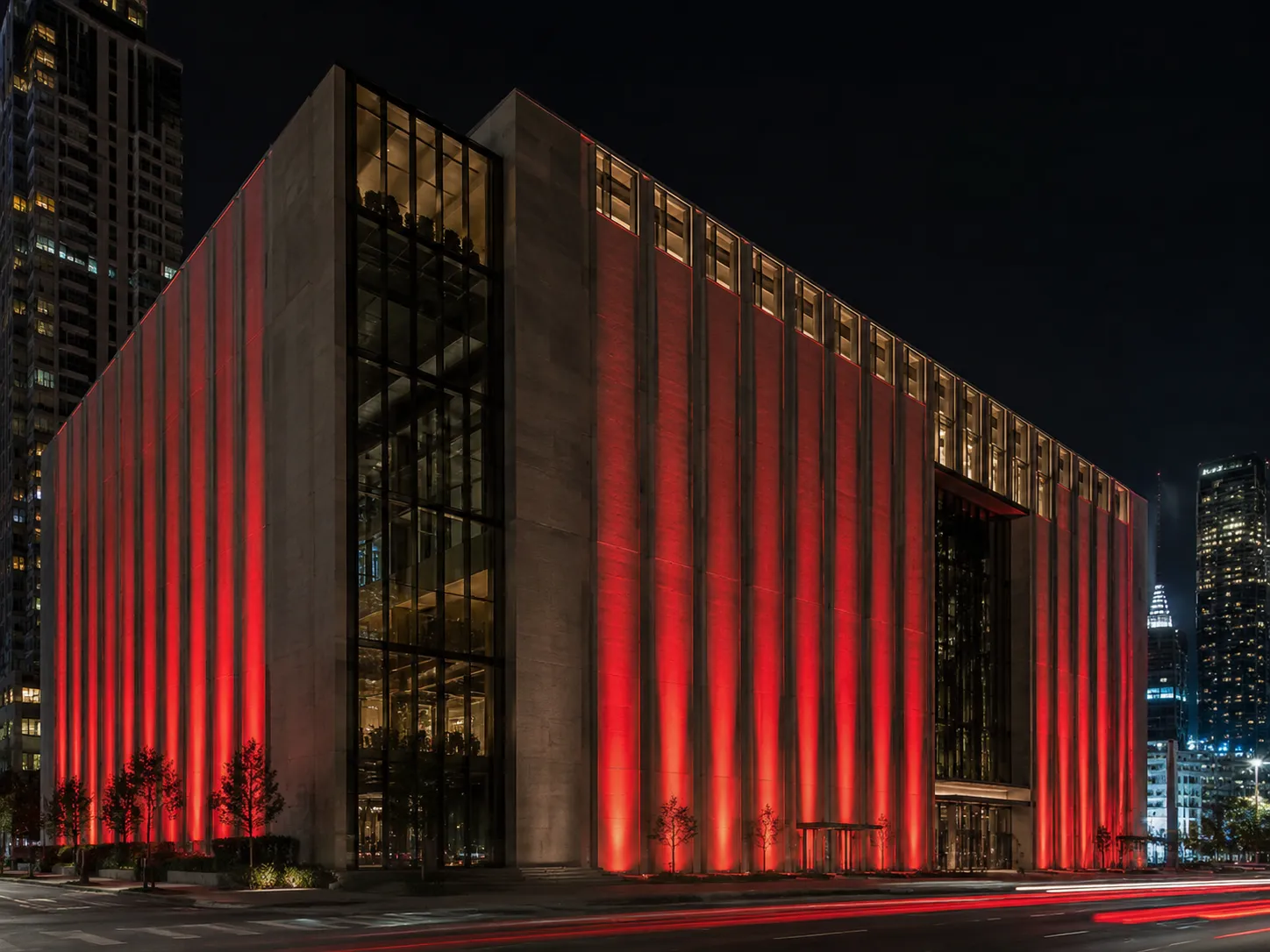

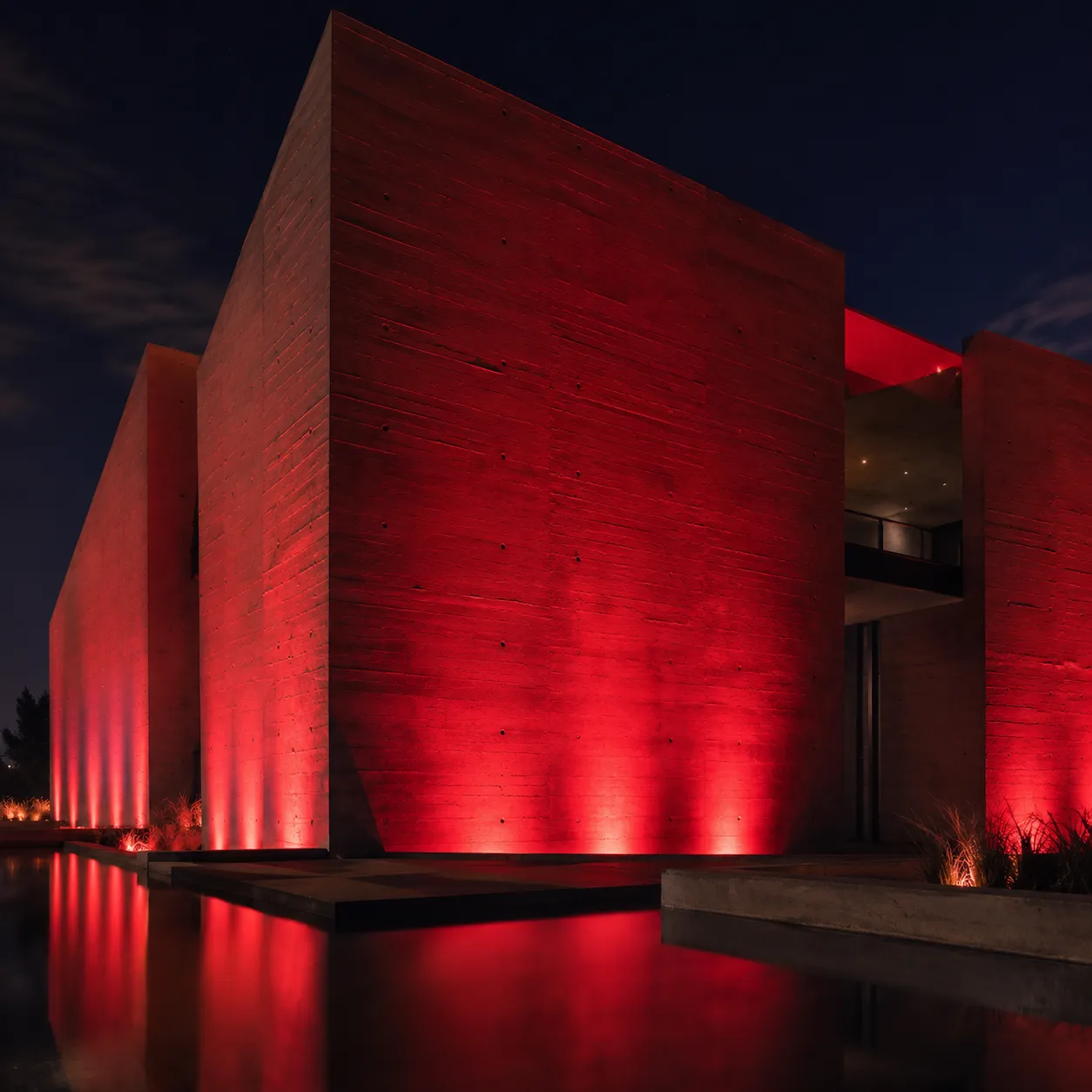

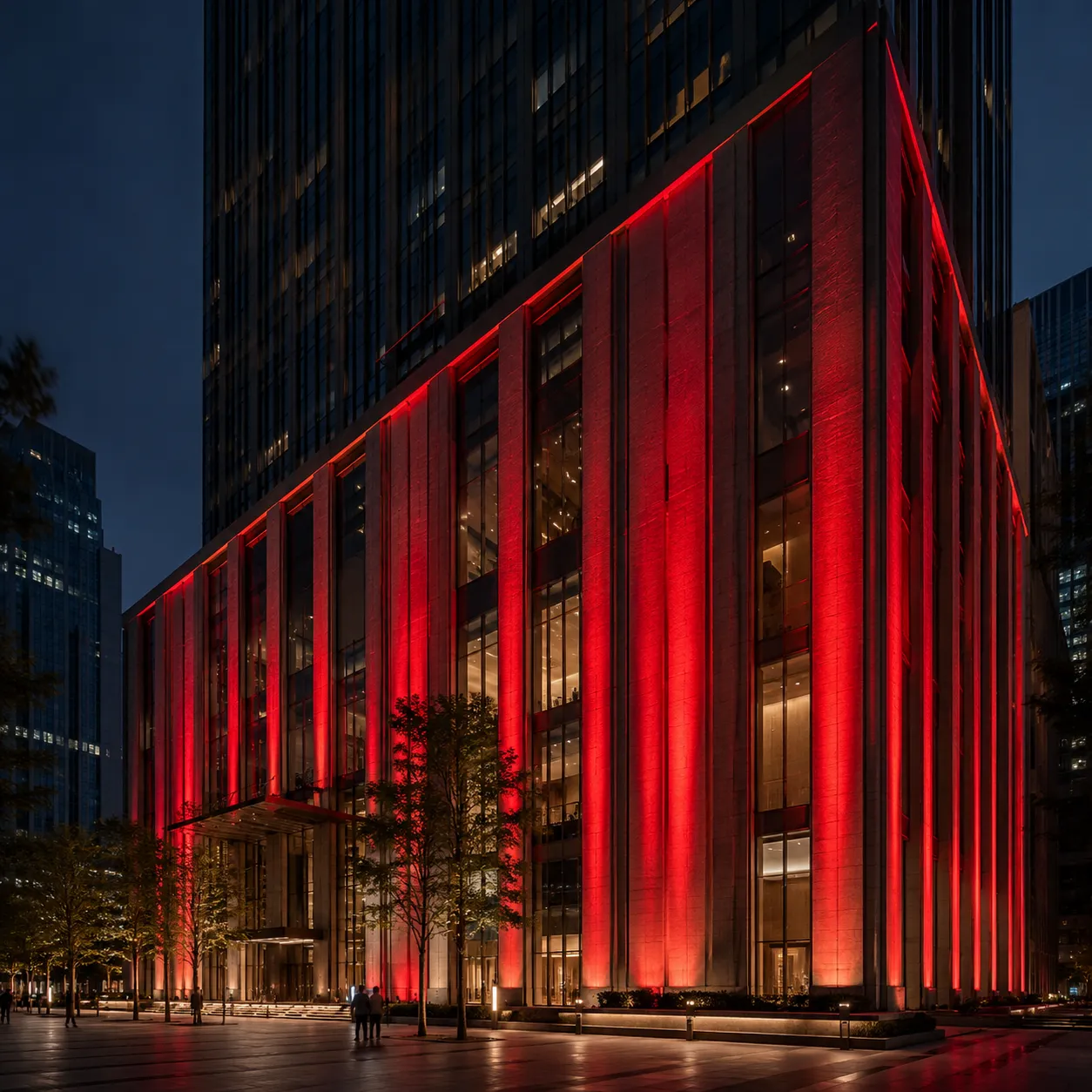

Image Gallery
Architectural Wall Washer
Designed for architectural façades and landscape applications, this LED wall washer delivers smooth, uniform illumination across walls, columns, bridges and structural features. Its 200° adjustable design allows flexible on-site aiming, helping create precise grazing, washing and accent-lighting effects.
Multiple beam angles—including 20°, 30°, 40° and 60°—support both focused and wide light distributions. Single-color, dual-white and RGBW options provide flexible solutions for static illumination, color-temperature adjustment and dynamic architectural scenes.
Constructed with a durable aluminum housing, tempered-glass cover and IP66 protection, the fixture provides reliable performance in demanding outdoor environments. ON/OFF and DMX512 control options make it suitable for building façades, hotels, plazas, parks, bridges and commercial landscape projects.
